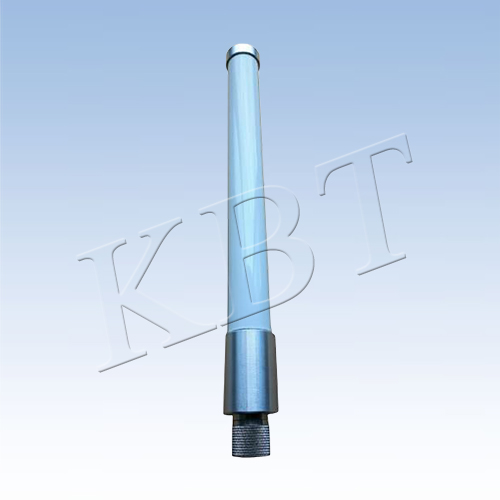

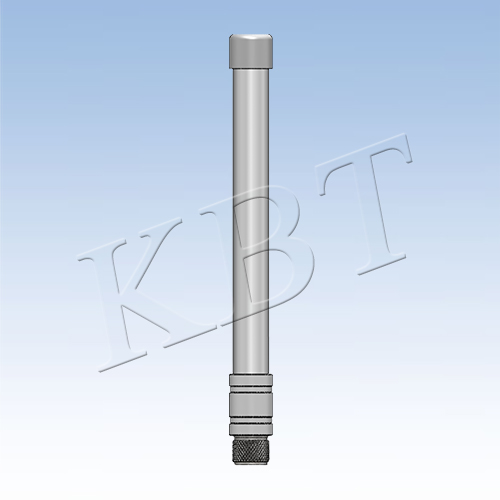

WiFi 1-Port Fiberglass Omnidirectional Antenna
WiFi 1-Port Fiberglass Omnidirectional Antenna
- KOP-2458G8F20
- WLAN/WiFi
- Fiberglass Antenna
- 2400-5850
- 8
- 360
- Vertical
● 2400~2500/5150~5850 MHz
● 6~8dBi / 360° / Vertical
● Small size,high gain
Electrical Specifications | ||
Frequency Range (MHz) | 2400~2500 | 5150~5850 |
Polarization | Vertical | |
Typical Gain (dBi) | 6 | 8 |
Typical Horizontal Beam Width (°) | 360 | |
Typical Vertical Beam Width (°) | 25 | 15 |
Impedance (Ω) | 50 | |
VSWR | ≤2.0 | |
Maximum Power (W) | 50 | |
Mechanical Specifications | ||
Connector | 1*N Male or 1*N Female | |
Connector Position | Bottom | |
Antenna Size (mm) | Φ19.6*300(±5) | |
Weight (g) | 120(±5) | |
Radome Material | Fiberglass | |
Radome Color | Gray | |
Operating Humidity (%) | 5~95 | |
Operating Temperature (°C) | -45~70 | |
Application | Outdoor | |
Mounting | Equipment installation | |
