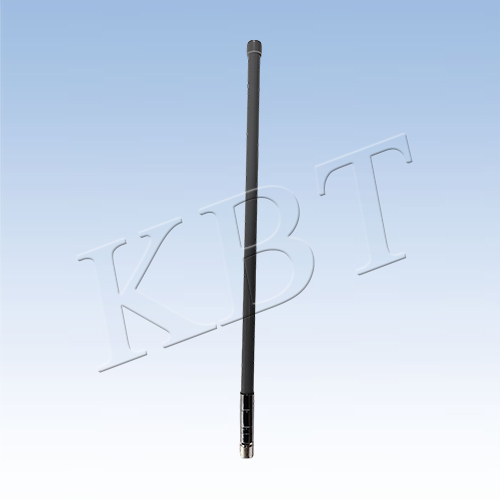

5700～5850MHz 12dBi Fiberglass Omni Antenna
5700～5850MHz 12dBi Fiberglass Omni Antenna
- TQJ-58G12F19U2
- WLAN/WiFi
- Fiberglass Antenna
- 5700～5850
- 12
- 360
- Vertical
5700-5850MHz Band Communications, Wireless Data transmission System
| TQJ-58G12F19U2 | |
| Applications | |
| 5700-5850MHz Band Communications, Wireless Data transmission System | |
| Electrical Specifications | |
| Frequency Range(MHz) | 5700～5850 |
| Bandwidth(MHz) | 150 |
| Polarization | Vertical |
| Gain(dBi) | 12 |
| Omni Ripple(dB) | ±1.5 |
| Horizontal Beam Width(°) | 360 |
| Vertical Beam Width(°) | 7 |
| Electrical UP (°) | 2 |
| Impedance (Ω) | 50 |
| VSWR | ≤1.5 |
| Maximum Input Power(W | 200 |
| Mechanical Specifications | |
| Connector Type | N Male |
| Connector Position | Bottom |
| Antenna Size (mm) | φ21*（900±5) |
| Antenna Weight (g) | 370±10 |
| Radome material | Fiberglass |
| Antenna Colour | Gray or Black@Fiberglass(or Customized) |
| Operating Temperature(℃) | -40～＋70 |
| Storage Temperature (℃) | -45～+80 |
| Relative Humidity(%) | 5～95 |
| Rated Wind Velocity(m/s) | 55 |
| Salt Spray Resistance | 96Hour Neutral（GB/T 2423.17-2008） |
| Ingress Protection | IP65( Block the leaking hole test) |
| Applications | Outdoor |
| Mounting | The Antenna can be directly connected to the device |
