China 806-960MHz gsm outdoor antenna customized quotes

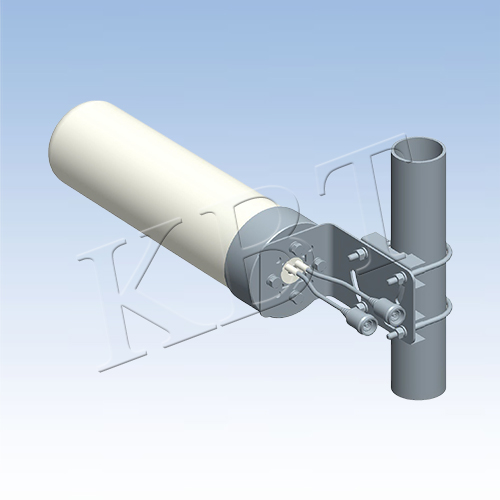

- TDJ-X1722CT
- 1710-2170MHz
- 11
Features:
● High gain and directionality
● Strong anti-interference ability
● Advantages of long-distance communication
Electrical specifications | |
Frequency range (MHz) | 1710-2170 |
Polarization | ±45° |
Gain (dBi) | 11 |
Electrical Downtilt (°) | 0 |
Horizontal Plane 3-dB BW(°) | 45±10 |
Elevation Plane 3-dB BW(°) | 45±10 |
Front-to-back ratio (dB) | ≥18 |
Cross-polar discrimination 0°(dB) | ≥15 |
Isolation (dB) | ≥25 |
Impedance (Ω) | 50 |
VSWR | ≤2.0 |
Intermodulation IM3 (2×43dBm carrier) | ≤-150dBc |
Maximum power (W) | 200 |
Lighting protection | DC Ground |
Mechanical specifications | |
Connector | 2*4.3-10 Female |
Connector position | Bottom, Exposed 18cm |
Antenna size (D*Lmm) | D96*315 |
Packing size (mm) | 506*126*132 |
Weight (kg) | Antenna 0.85KG,Bracket 0.4KG |
Radome material | Glass Fiber |
Radome color | White |
Mechanical tilt (°) | -30 - 0 |
Operating temperature (℃) | -40-+60 |
Rated wind velocity (m/s) | 36.9 |
Suitable pole diameter (mm) | D30-50 |
Mounting kit | JM-TD2A |
