Directional Couplers Series
Directional Couplers Series
- OHQ-5-0638-4310F-W/OHQ-6-0638-4310F-W/OHQ-7-0638-4310F-W/OHQ-8-0638-4310F-W/OHQ-10-0638-4310F-W//OHQ-13-0638-4310F-W/OHQ-15-0638-4310F-W/OHQ-20-0638-4310F-W/OHQ-30-0638-4310F-W
- Others
- 617-3800

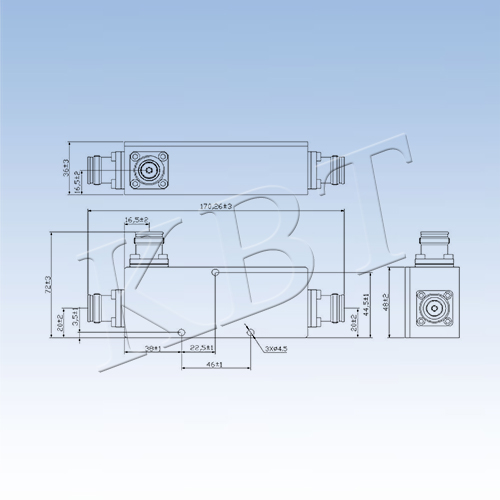

Wide Frequency Band 617-3800MHz
Low VSWR & Insertion Loss
Up to 300W Average Power
High Isolation
Model No. | OHQ-5-0638-4310F-W OHQ-6-0638-4310F-W | OHQ-7-0638-4310F-W OHQ-8-0638-4310F-W | OHQ-10-0638-4310F-W OHQ-13-0638-4310F-W | OHQ-15-0638-4310F-W OHQ-20-0638-4310F-W | OHQ-30-0638-4310F-W | |
Freq(MHz) | 617-3800 | |||||
Coupling(dB) | 5/6 | 7/8 | 10/13 | 15/20 | 30 | |
Insertion Loss(dB) | ≤2.0/≤1.75 | ≤1.5/≤1.2 | ≤1.0/≤0.7 | ≤0.5/≤0.4 | ≤0.3 | |
Accuracy(dB) | ±1.0/±1.0 | ±1.0/±1.0 | ±1.0/±1.0 | ±1.2/±1.2 | ±1.2 | |
Isolation(dB) | ≥23/≥24 | ≥25/≥26 | ≥28/≥31 | ≥35/≥38 | ≥46 | |
VSWR | ≤1.3 | |||||
PIM(dBc) | ≤-160dBc@2*43dBm | |||||
Power(W) | 300 | |||||
Impedance | 50 ohm | |||||
Connector | 4.3-10 female | |||||
Color | Grey | |||||
Temp(deg) | -30~+65 | |||||
Humidity | 5%-95% | |||||
Application | Indoor or Outdoor IP65 | |||||
