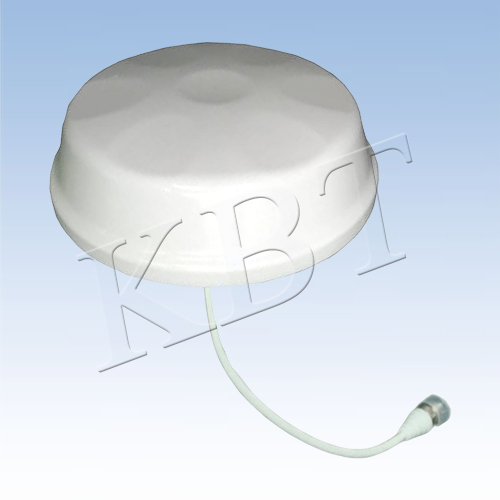

617～6000MHz 5dBi SISO Omnidirectional ceiling antenna
617～6000MHz 5dBi SISO Omnidirectional ceiling antenna
- TQJ-0660MOE
- Indoor DAS
- Ceiling mount Antenna
- 617-6000
- 5
- 360
- Vertical
Used in 2G/3G/4G/5G/WLAN system
| TQJ-2470E-A | ||||
| Application | ||||
| Used in 2G/3G/4G/5G/WLAN system | ||||
| Frequency range (MHz) | 617-960 | 1710～2700 | 3300～4200 | 4800～6000 |
| Polarization | Vertical | |||
| Peak Gain (dBi) | 3.5 | 4 | 5 | 5 |
| Horizontal beam width (°) | 360 | |||
| Typical Vertical beam width (°) | 80 | 50 | 40 | 50 |
| Impedance (Ω) | 50 | |||
| VSWR | ≤2.0 | |||
| Maximum power (W) | 50 | |||
| Lighting protection | DC Ground | |||
| Mechanical specifications | ||||
| Connector | N Female or 4.3-10 Female | |||
| Exposed cable size (cm) | 30(or customer requirement) | |||
| Connector position | Bottom | |||
| Antenna size (mm) | Φ146*42 | |||
| Packing size (mm) | 148*148*145 | |||
| Weight (kg) | ≤0.3 | |||
| Radome material | ABS | |||
| Radome color | White | |||
| Operating humidity (%) | 5～95 | |||
| Operating temperature (℃) | -40～60 | |||
| Application | Indoor | |||
| Mounting | Fixed with nut | |||
