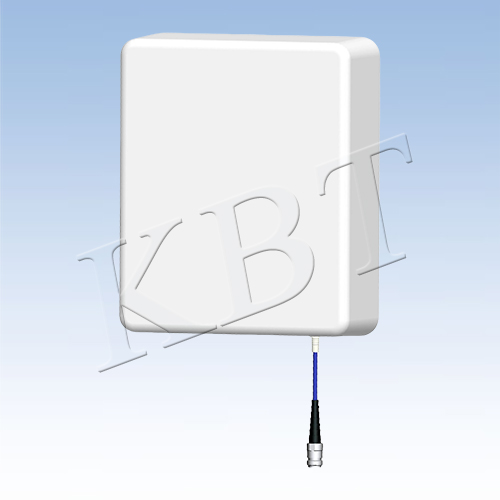

617-4200MHz 6-9dBi Directional Panel Antenna
617-4200MHz 6-9dBi Directional Panel Antenna
- TDJ-0642BGA-MY
- Outdoor DAS
- Panel Antenna
- 617-4200
- 9
- 90
- Vertical
Used in 2G/3G/4G/5G/WLAN system
| TDJ-0642BGA-MY | ||||
| Application | ||||
| Used in 2G/3G/4G/5G/WLAN system | ||||
| Electrical specifications | ||||
| Frequency range (MHz) | 617～698 | 698～960 | 1695～2700 | 3300～4200 |
| Polarization | Vertical | |||
| Gain (dBi) | 6 | 7 | 8 | 9 |
| Horizontal beam width (°) | 90 | 80 | 75 | 55 |
| Typical Vertical beam width (°) | 75 | 80 | 70 | 50 |
| Front-to-back ratio (dB,avg.) | 14 | 16 | 25 | 20 |
| Impedance (Ω) | 50 | |||
| VSWR | ≤1.8 | |||
| Intermodulation IM3 (2×43dBm carrier) | -153dBc | -153dBc | -153dBc | -153dBc |
| Maximum power (W) | 50 | |||
| Lighting protection | DC Ground | |||
| Mechanical specifications | ||||
| Connector | 4.3-10 Female or N Female | |||
| Exposed cable size (cm) | 30 | |||
| Connector position | Bottom | |||
| Antenna size (mm) | 306*250*86 | |||
| Packing size (mm) | 455*260*113 | |||
| Weight (kg) | ≤1.5 | |||
| Radome material | ABS | |||
| Radome color | White (RAL 9003) | |||
| Operating temperature (℃) | -40～60 | |||
| Application | Outdoor | |||
| Mechanical tilt (°) | Adjusting Elevation 0～20/Adjusting Turn ±45 | |||
| Rated wind velocity (m/s) | 40 | |||
| Suitable pole diameter (mm) | Φ35～Φ125 | |||
| Mounting kit | JM-VB8 | |||
