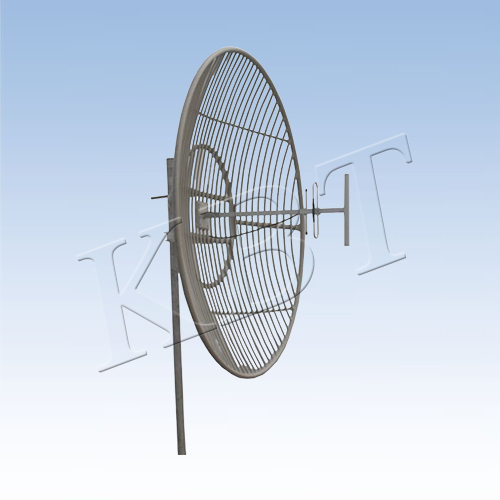

400-490MHz High Gain Low VSWR Parabolic Antenna
400-490MHz High Gain Low VSWR Parabolic Antenna
- TDJ-400SPL15
- Private Communication
- Parabolic Antenna
- 400-490
- 14
- Vertical
● High Gain, Low VSWR
● Welded Aluminum Grid Reflector
● UV stable light gray powder coat finish
● Low Wind Loading
Model | TDJ-400SPL15 |
Freq. Range-MHz | 400 to 490 |
Bandwidth-MHz | 20 （ 430-450MHz ) |
Gain-dBi | 14 |
Beamwidth- ° | E:27 H:27 |
F/B Ratio-dB | ≥20 |
VSWR | ≤1.5 |
Impedance-Ω | 50 |
Polarization | Vertical |
Max. Power-W | 200 |
Connector Type | N Female or Customization |
Dimension-m | φ 1.5 |
Work Wind Velocity (m/s) | 36.9 |
Weight-Kg | 15 |
Bracket Model | JM-O1 |
Pole Diameter-mm | Φ60～75 |
