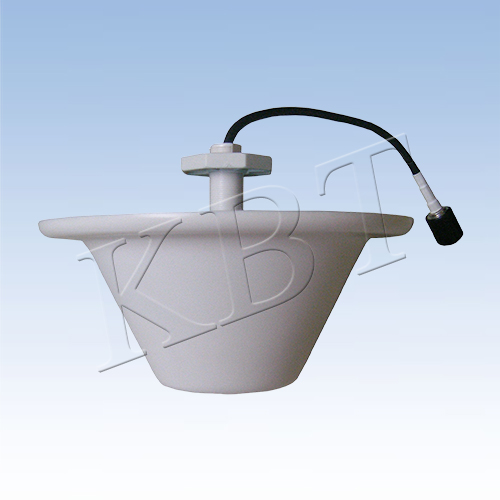

698～2700 Indoor Ceiling Mount Antenna
- TQJ-0727XDO-M
- 698～960/1710～2700MHz
- 2/5
- Vertical
Features:
Broadband, Low VSWR
Small size, Low profile, Good appearance
Common ceiling mounting
Model | TQJ-0727XDO-M | ||
Freq.Range-MHz | 698-800 | 800-960 | 1710-2700 |
Gain-dBi | 2 | 5 | |
VSWR | ≤2.0 | ≤1.5 | |
Ver.Beamwidth-° | 85±15 | 55±15 | |
Impedance-Ω | 50 | ||
Polarization | Vertical | ||
Max.Power-W | 50 | ||
IM3-dBm(33dBm) | ≤-107 | ||
Connector Place | Bottom | ||
Connector | N female or customized | ||
Dimensions-mm | Φ186×81 | ||
Weight-Kg | 0.2 | ||
Mounting | Fixed with nut | ||
Note: The antenna is suitable for wooden or plaster ceiling; other ceiling should be customized. | |||
