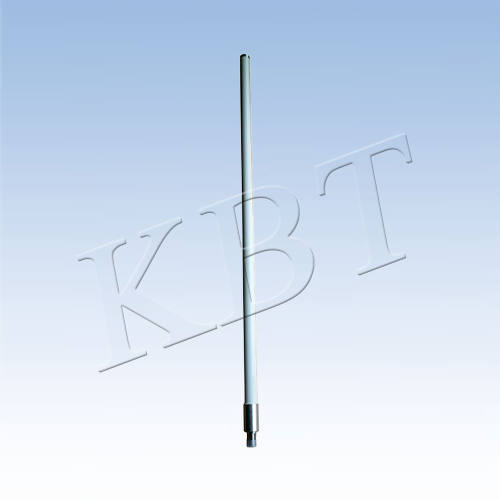

1-Port Low Power Fiberglass Omni Antenna
- TQJ-06142458G3F26-A
- 5G System
- Fiberglass Antenna
- 566-5900
- 2-6
- 360
- Vertical
● 566-678/1420-1450/2400-2500/5100-5900MHz
● 3dBi / 360°
● Low Power，Low Gain
Electrical Specifications | ||
Frequency Range(MHz) | 566-678/1420-1450/2400-2500/5100-5900 | |
Bandwidth(MHz) | 112/30/100/800 | |
Polarization | Vertical | |
Gain(dBi) | 2±1/4±1/5±1/6±1 | |
Horizontal Beam Width(°) | 360, Omnidirectional | |
Vertical Beam Width(°) | 78±8/45±8/35±8/28±8 | |
Horizontal unroundness(dB) | 566～678@±1/1420～1450@±1.5 2400～2500@±2/5100～5900@±4 | |
Impedance(Ω) | 50 | |
VSWR | ≤2.0@566-678/1420-1450，≤3@2400-2500/5100-5900 | |
Maximum Power(W) | 2 | |
Mechanical Specifications | ||
Connector Type | N Female | |
Connector Position | Bottom | |
Antenna Size(mm) | Φ28.8*（1200±10） | |
Antenna Weight(g) | 500±30 | |
Radome Material | Fiberglass | |
Radome Color | White | |
Operating Temperature(°C) | -40~+70 | |
Storage Temperature(℃) | -45～+80 | |
Operating Humidity(%) | 5~95 | |
Rated Wind Velocity(m/s) | 55 | |
Salt Spray Resistance | 96Hour Neutral（GB/T 2423.17-2008） | |
waterproofing grade | IP65 | |
Application | Outdoor | |
Mounting | The Antenna can be directly connected to the device | |
Typical Pattern | ||
Typical pattern E Plane
| Typical pattern H Plane
| |
