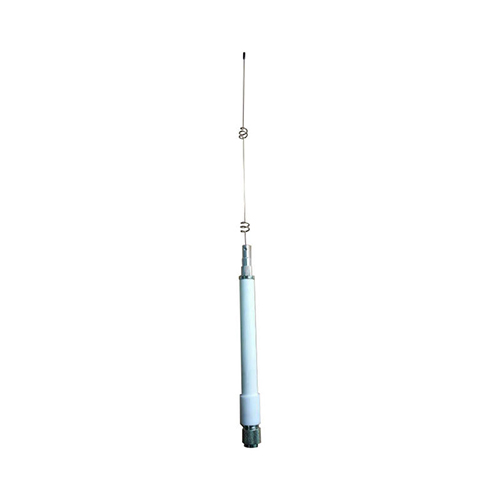

TQJ-1400UA-A |
Applications |
1350-1450MHz Communications/ Wireless Data transmission syste/ Wireless Paging System |
Electrical Specifications | |
Frequency Range (MHz) | 1350～1450 |
Band Width (MHz) | 100 |
Polarization | Vertical |
Gain (dBi) | 7±1 |
Horizontal Beam Width(°) | 360 |
Vertical Beam Width(°) | 25 |
Omni Ripple(dB) | ±1.5 |
Impedance (Ω) | 50 |
VSWR | ≤2 |
Maximum Input Power (W) | 100 |
Mechanical Specifications | |
Connector Type | N Male |
Connector Position | Bottom |
Antenna Size (mm) | φ23*（510±5） |
Antenna Weight (g) | 150 |
Antenna Material | Fiberglass |
Antenna Colour | White or Black（or Customized） |
Operating Temperature (℃) | -40～＋65 |
Relative Humidity(%) | 5～95 |
Salt Spray Resistance | 96 Hour Neutral（GB/T 2423.17-2008) |
Ingress Protection | IP65 |
Rated Wind Velocity (m/s) | 45 |
Applications | Outdoor |
Mounting | The Antenna can be directly connected to the device Or With the M110N Magnetic Mount |
