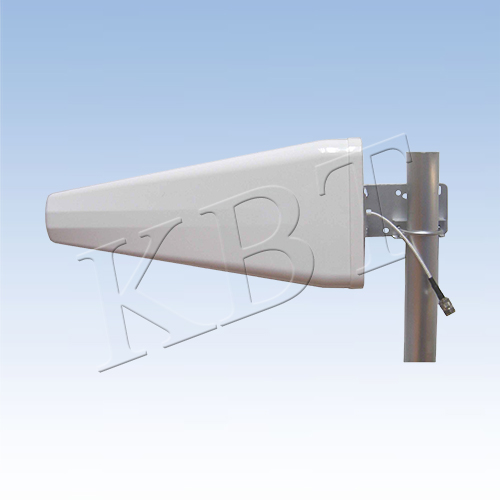

698～3800MHz Logarithmic Periodic Directional Antenna
- TDJ-0738DSFL-M
- 698～960/1710～2700/3300～3800MHz
- 9.5/10.5/11dBi
- Vertical
Features:
● High gain and directionality
● Strong anti-interference ability
● Advantages of long-distance communication
| TDJ-0738DSFL-M | |||
| Application | |||
| Used in 2G/3G/4G/5G/WLAN system | |||
| Electrical specifications | |||
| Frequency range (MHz) | 698～960 | 1710～2700 | 3300～3800 |
| Polarization | Vertical | ||
| Gain (dBi) | 9.5±1 | 10.5±1 | 11±1 |
| Horizontal beam width (°) | 85±15 | 70±15 | 60±15 |
| Vertical beam width (°) | 60 | 55 | 50 |
| Front-to-back ratio (dB) | 15 | 20 | 18 |
| Impedance (Ω) | 50 | ||
| VSWR | ≤1.7 | ||
| Intermodulation IM3 (2×43dBm carrier) | -153dBc | ||
| Maximum power (W) | 50 | ||
| Mechanical specifications | |||
| Connector | N Female or 4.3-10 Female | ||
| Connector position | Bottom | ||
| Antenna size (mm) | （442*210*65）±1.5 | ||
| Packing size (mm) | 488*225*88 | ||
| Weight (kg) | 1 (Include bracket) | ||
| Radome material | ABS | ||
| Radome color | White | ||
| Operating temperature (℃) | -40～60 | ||
| Application | Outdoor | ||
| Mechanical tilt (°) | 0～60 | ||
| Rated wind velocity (m/s) | 55 | ||
| Suitable pole diameter (mm) | Φ25-Φ50 | ||
| Mounting kit | JM-TA | ||
