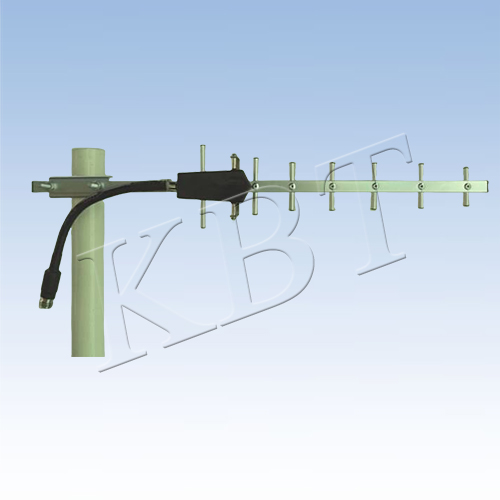

746-896MHz 10dBi Yagi Antenna

Applications

746-896MHz Band Communications/ Wireless Data transmission System/ Wireless Paging System

Electrical Specifications

Number of Elements

8

Frequency Range (MHz)

746～896

Band Width (MHz)

150

Polarization

Vertical or Horizontal

Gain (dBi)

10

Avg.Horizontal Beam Width(°)

56

Avg.Vertical Beam Width(°)

45

Typical F/B(dB)

16

Impedance (Ω)

50

VSWR

≤1.8

Maximum Input Power (W)

300

Mechanical Specifications

Connector Type

N Female

Connector Position

Bottom

Antenna Size (mm)

L:760±5， W:201

Antenna Weight (kg)

2.3±0.1（With the Bracket）

Antenna Colour

Black

Operating Temperature (℃)

-40～＋70

Relative Humidity(%)

5～95

Rated Wind Velocity (m/s)

78.23

Salt Spray Resistance

576Hour Neutral（GB/T 2423.17-2008)

Ingress Protection

IP65

Applications

Outdoor

Mounting (Suitable Pole Diameter)

Mast mounting (support mast shall be prepared by customer)

φ35~ φ50

*Each antenna has a rugged, fully welded design to withstand harsh environmental conditions.

*Our antennas can be black anodized,.Lightning Protection:DC Ground.

*The mounting hardware supplied allows either vertical or horizontal polarization.
