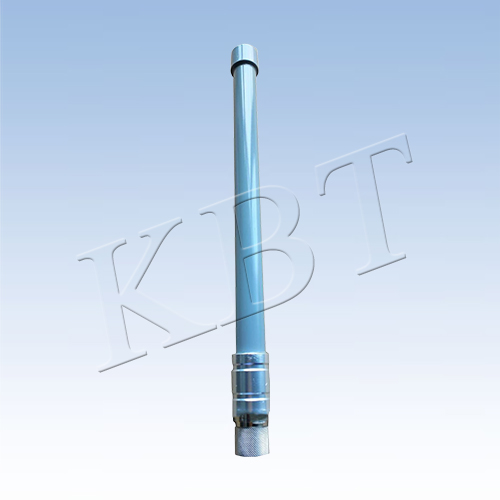

2380-2520MHz 10dBi Fiberglass Omni Antenna
2380-2520MHz 10dBi Fiberglass Omni Antenna
- TQJ-2325G10F20U2
- WLAN/WiFi
- Fiberglass Antenna
- 2380～2520
- 10
- 360
- Vertical
2380-2520MHz Band Communications/ Wireless Data transmission System/ Wireless Paging System.
| TQJ-2325G10F20U2 | |
| Applications | |
| 2380-2520MHz Band Communications/ Wireless Data transmission System/ Wireless Paging System. | |
| Electrical Specifications | |
| Frequency Range(MHz) | 2380～2520 |
| Bandwidth(MHz) | 140 |
| Polarization | Vertical |
| Gain(dBi) | 10 |
| Horizontal Beam Width(°) | 360 |
| Vertical Beam Width(°) | 8 |
| Electrical UP (°) | 2 |
| Horizontal unroundness(dB) | ±1.5 |
| Impedance (Ω) | 50 |
| VSWR | ≤1.8（MAX） |
| Maximum Input Power(W | 200 |
| Mechanical Specifications | |
| Connector Type | N Male |
| Connector Position | Bottom |
| Antenna Size (mm) | φ24*（900±5） |
| Antenna Weight (g) | 330±50 |
| Radome material | Fiberglass |
| Radome color | Gray or Black@Fiberglass(or Customized) |
| Operating Temperature(℃) | -40～＋70 |
| Relative Humidity(%) | 5～95 |
| Rated Wind Velocity(m/s) | 55 |
| Salt Spray Resistance | 96Hour Neutral（GB/T 2423.17-2008） |
| waterproofing grade | IP65 |
| Applications | Outdoor |
| Mounting | mounting with piggyback device |
