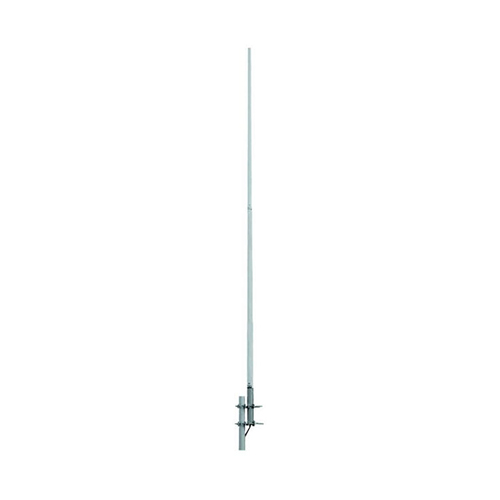

Model | TQJ-400C | TQJ-400D | TQJ-400DII | TQJ-400W |
Freq. Range-MHz | 400~480 | 400～480 | 400 to 480 | 380 to 490 |
Bandwidth-MHz | 16 | 16 | 10 | 30 |
Gain-dBi | 7.8 | 10.2 | 11 | 3.5 |
Vertical Beamwidth-° | 17 | 10 | 9 | 58 |
VSWR | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Impedance-Ω | 50 | 50 | 50 | 50 |
Polarization | Vertical | Vertical | Vertical | Vertical |
Max. Power-W | 100 | 100 | 100 | 100 |
Connector Type | UHF or Customization | N Female or Customization | N Female or Customized | N Female |
Antenna Length-m | 1.8±0.01 | 4±0.2 | 7.3 | φ70×600 |
Weight-Kg(with bracket) | 1.6±0.1 | 4.2±1 | 10.5 | 1.63 |
Mast Diameter-mm | φ40~50 | ф40-50 | Φ40 to 50 | Φ40 to 70 |
